Prestress concrete spun pole cage mesh welding machine

FOB Reference Price:Get Latest Price
US $69,000-70,000 / Sets | 1 Set/Sets concrete spun pole cage mesh welding machine (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
amity care
Model Number:
Diameter of cage:
Serial No.190,No.230,No270,No.310,No.350
Number of longitudinal reinforcements:
12, 14, 16pcs
Diameter of longitudinal reinforcement:
12.1, 14, 16mm
Diameter of hoop reinforcement:
3.5- 6mm
Cage Pitch:
Driving power:
Welding power:
Wire diameter:
Prestress concrete spun pole cage mesh welding machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month Prestress concrete spun pole cage mesh welding machine
Packaging & Delivery
Packaging Details
sea worth packaging of prestress concrete spun pole cage mesh welding machine is container
Lead Time :
Shipped in 30 days after payment


Diameter of welded frame  ø 190,ø 230,ø 270,ø 310,ø 350 series
Length of welded reinforcement cage7M-15M
Number of longitudinal reinforcements6, 7, 10 , 12, 14, etc
Diameter of longitudinal reinforcementø7.1, ø9.0, ø10.7, ø12.6MM
Diameter of hoop reinforcement ø4- ø6
Cage pitch0-100mm
Driving power8.4KW-15.2KW
Welding power200KVA-300KVA
ControllerNC controller

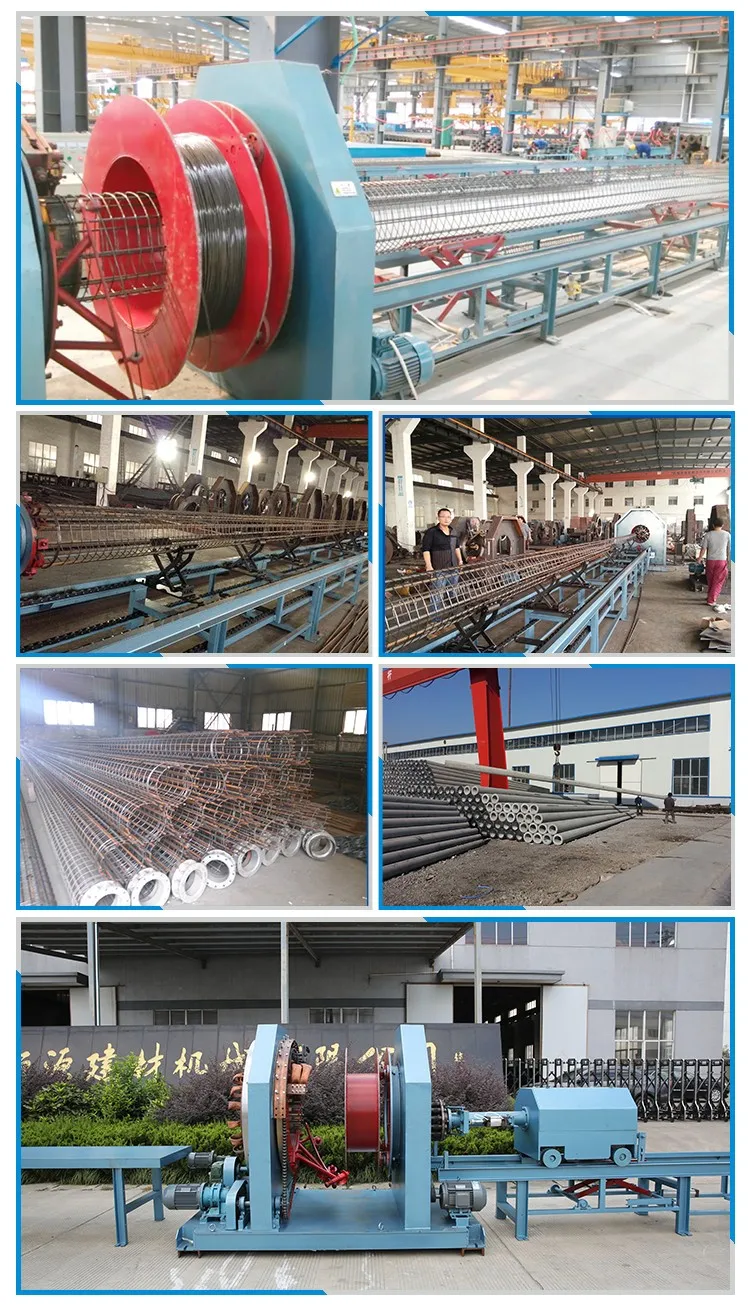

      prestressed spun concrete pole cage welding machine  is a special-purpose welder used to-produce the high-strength concrete pipe pile reinforcement cages. The welder is widely-appliedto reinforcement cage welding by self-stressing and prestressing pretensioning-method and post-tensioning method.


1. Host speed up to 43 r/min, is three times as much as the current domestic similar-


2. Failure rate is extremely low, is 1/20 of the similar products.

3. High weld strength, unlike similar products have a very serious phenomenon of reinforcement.

4.Can cage welding square body, the function, can save factory in hooped cost USD2000-3000-

 5. Welding copper head loss was only about 1/30 of the similar products, annual cost saving-


6. l general manufacturers use our products to meet the production requirements, compared-

with similar products to save labor costs RMB 100000 per year, energy costs about-


7.Use this product than use similar equipment can save USD30000-50000.


Taizhou amity care international co.,ltd has been regarded as the foreign trade department-

of" Hengyuan building material machinery", all abroad (overseas) tasks and international-

businesswill be undertaken by "amity care ". We are manufacturer of centrifugal spinning-

machine ,mould ,heading machine ,cutting machine,cage welding machine , tension jack-

for pre-stress .feeding machine for different capacity ,weave welding machine ,sheet cutting-

machine etc.  we also can supply setting up a new factory full line service . We have already-

exported various kinds of concrete pile ,pole and pipe concern making machines to overseas-

countries and regions such as Indonesia ,parkistan,Vietnam , myanmar ,korea,malaysia ,-

south african etc .Mideast, Southeastern Asia.
