Auto concrete spun pile/pole steel button heading machine

FOB Reference Price:Get Latest Price
US $10,000-15,000 / Sets | 1 Set/Sets concrete spun pile/pole steel button heading machine (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Amity Care
Model Number:
After-sales Service Provided:
Overseas service center available
Operation direction:
left and right direction
Strength of heading:
Diameter of bar:
7.1mm, 9.0mm, 10.7mm, 12.6mm
concrete spun pile steel button heading machine
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea worthy package of concrete spun pile steel button heading machine
Lead Time :
Shipped in 30 days after payment


Product Description

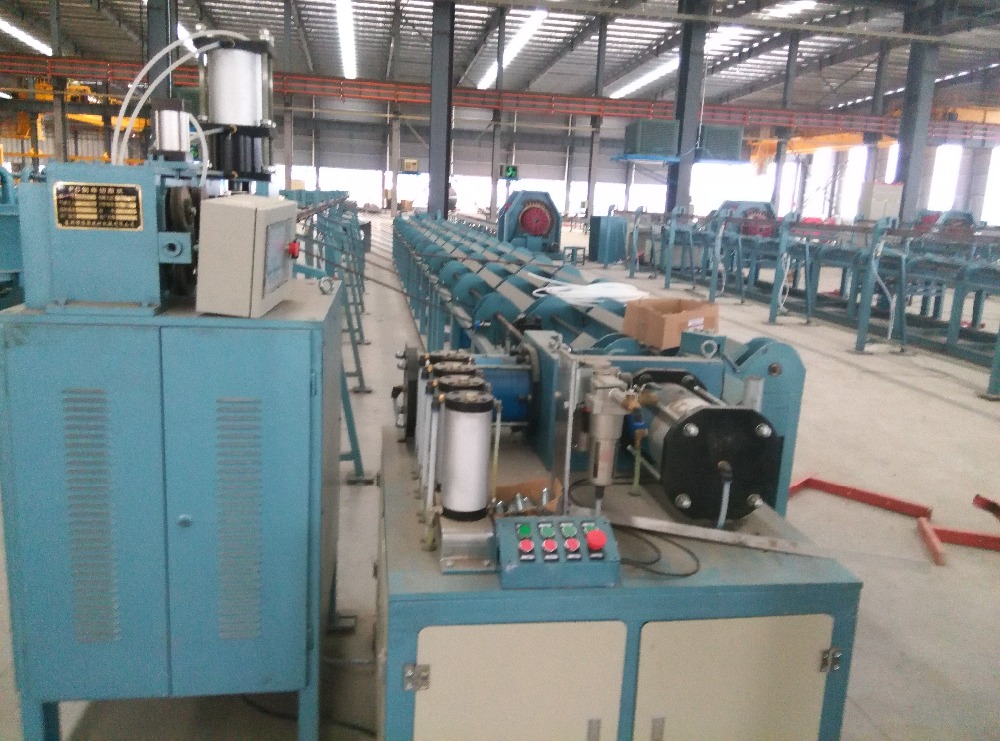

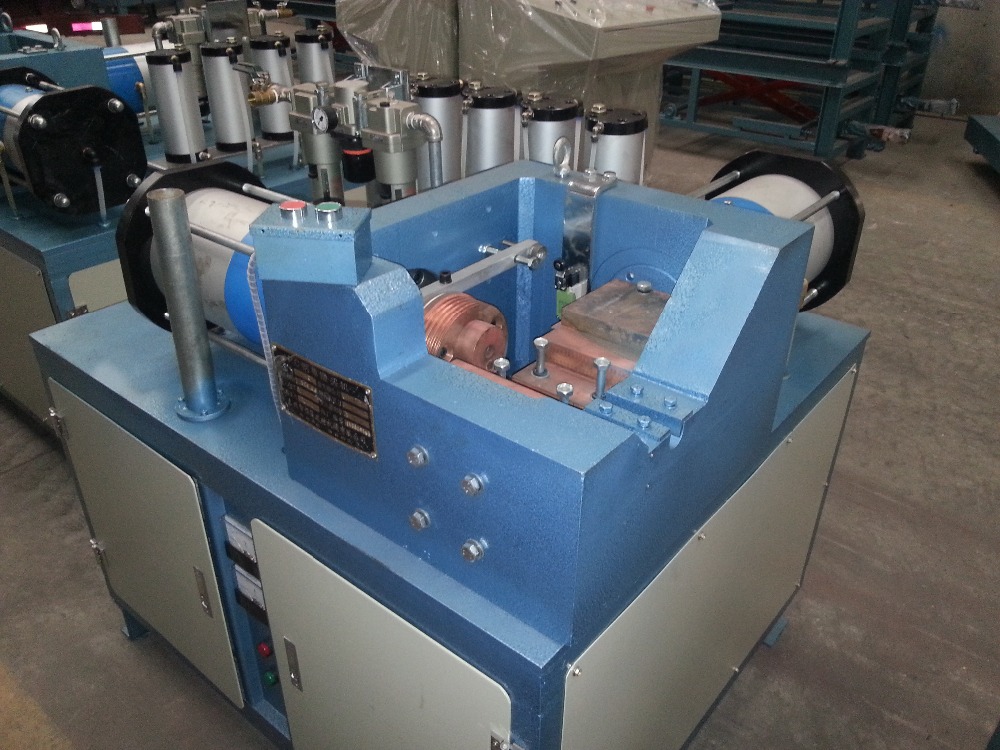

Auto concrete spun pile/pole steel button heading machine


 The auto bar moving machine matched with cutter and heading  machine together,achieve to auto cutting,heading and moving bar away way .NC controller,mote adopts VFD,accurate speed,stably


 work,handle and automatic way change any time,it can work in any where,easy installation,energy-efficient,after sale service with commercial cost.


 Techinal parameters


Air MAX7.2 kg/cm squared
Input voltageAC380V plus or minus 5%, 50 HZ
 Rated capacity15 KVA
Max.clamping force50T when the air pressure is 7.2kg/cm²
Max.upsetting force16T when the air pressure is 7.2kg/cm²
Diameter of barΦ7.1mm, Φ9.0mm, Φ10.7mm, Φ12.6mm
Same-specification operation directionleft and right direction
The strength loss of heading reinforcement<5%
Biggest heating current7000A
Weight1000 kg



Company Information


1.One year warranty under normal use and we supply maintenance for life for free.

2.24 hours technical support by Phone, E-mail, SKYPE, or Remote Control.

3.English operation manual, popular and easy to understand.

4.Free trainings to make sure you master the operation of cnc router.


Taizhou amity care international co.,ltd has been regarded as the foreign trade department of" Hengyuan

building material machinery", all abroad (overseas) tasks and international businesswill be

undertaken by "amity care ".

We are manufacturer of centrifugal spinning machine ,mould ,heading machine ,cutting

machine,cage welding machine , tension jack for pre-stress .feeding machine for different

capacity ,weave welding machine ,sheet cutting machine etc. we also can supply setting up

a new factory full line service . We have already exported various kinds of concrete pile ,

pole and pipe concern making machines to overseas countries and regions such as indonesia

,parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
